About the MSCAdams Component

The MSCAdams component allows Isight to exchange data with ADAMS/View and to execute an ADAMS/View simulation.

The component launches ADAMS/View, allowing you to select the parameters that will be exported into Isight. Once the parameters are exported, you can modify them in Isight.

The MSCAdams component can do the following:

  • Update parameters in the .cmd file from the component.
  • Execute a modified .cmd file with ADAMS/View solver.
  • Map input/output parameters to Isight parameters by selecting the parameters in ADAMS/View.

You can use Isight process components (such as DOE and Optimization) to iterate through the design space and optimize the model.

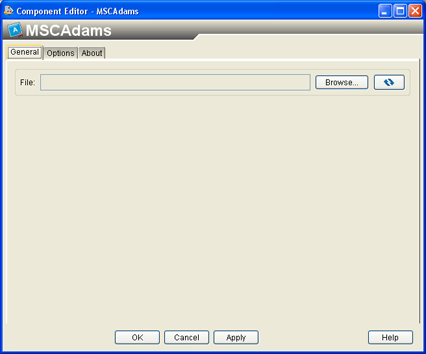

The following figure shows the MSCAdams Component Editor:



To start the MSCAdams Component Editor, double-click the MSCAdams component icon . When you have finished configuring the MSCAdams Component Editor, click OK to close the editor. For more information about inserting components and accessing component editors, see Working with Components in the Isight User’s Guide.
