About the Monte Carlo Component

Using the Monte Carlo component, a product or process is simulated randomly, given the stochastic properties of one or more random variables, to characterize the statistical nature of the responses (outputs) of interest.

Related Topics
About the Monte Carlo Results Aggregate Parameter

You can choose from three different sampling techniques when you are configuring the Monte Carlo component. For more information, see About the Monte Carlo Sampling Techniques.

Upon execution in the Runtime Gateway, Isight automatically creates a Monte Carlo Results aggregate parameter containing basic results (see About the Monte Carlo Results Aggregate Parameter).

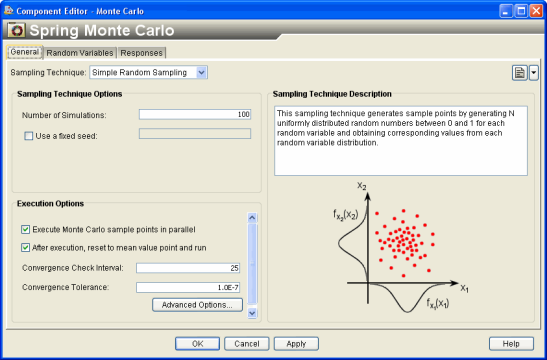

The following figure shows the Monte Carlo Component Editor:



To start the Monte Carlo Component Editor, double-click the Monte Carlo component icon . When you have finished configuring the Monte Carlo Component Editor, click OK to close the editor. For more information about inserting components and accessing component editors, see Working with Components in the Isight User’s Guide.
