Selecting an MSCAdams Input File

After you select an input file, the Isight MSCAdams component launches MSCAdams and opens the selected model. You can then select the parameters that you want the component to use in your Isight model.

  1. Double-click the MSCAdams component icon .

    The MSCAdams Component Editor appears.

  2. Click Browse.

  3. Navigate to the MSCAdams input (.cmd) file that you want to use, and click Open.

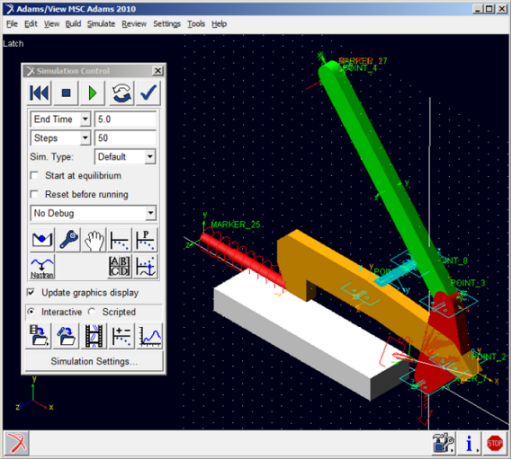

    The component launches MSCAdams and opens the selected model. Using the Isight plug-in in MSCAdams, you can select the input and output variables that you want to export into Isight.



  4. Click to re-read the input file and extract parameters from it.
